BOFA

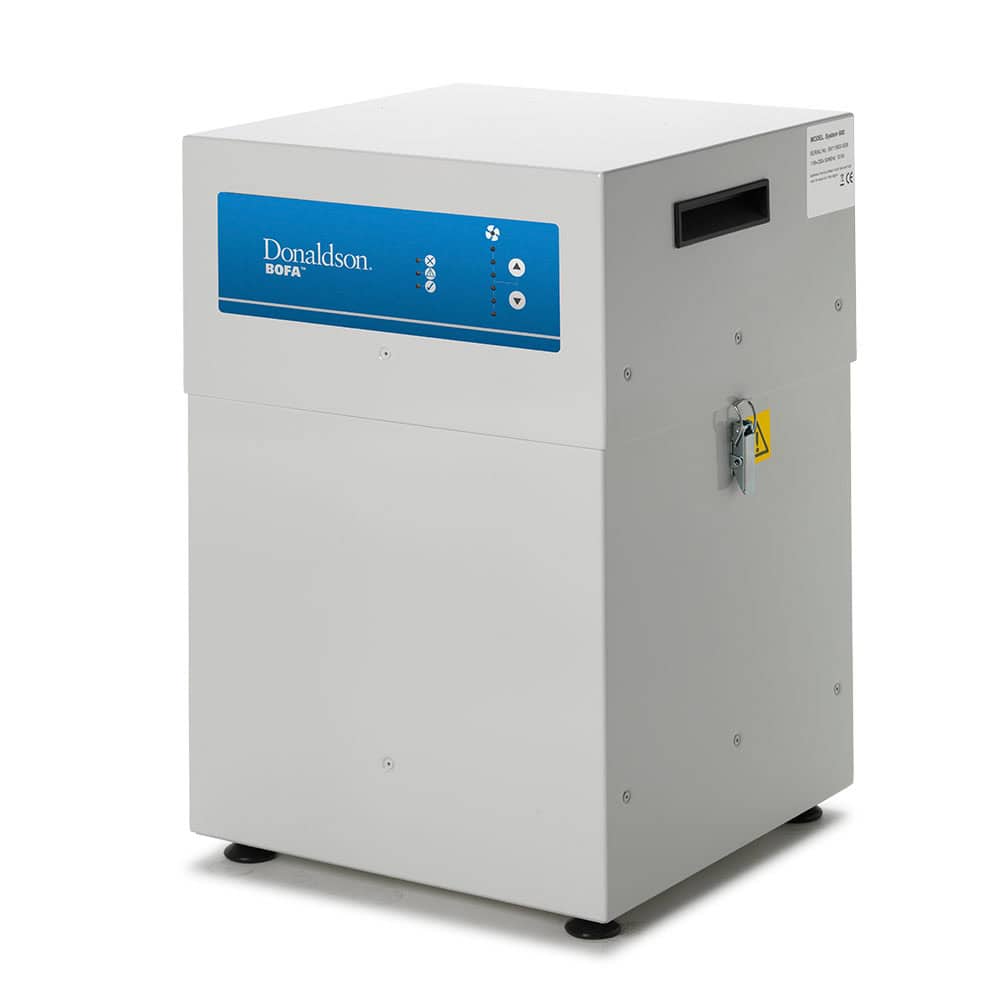

BOFA V 600

BOFA V 600

Regular price €2.765,00 EUR
Regular price Sale price €2.765,00 EUR
Sale Sold out
Tax included.

The V 600 fume extraction system is designed to filter fumes from soldering and various electronics applications. It features a long-life filter, high airflow rate, and the ability to support up to seven operators.

  • Long-lasting, low-cost replacement filters
  • High air flow rate
  • Built-in noise cancellation
View full details

Ideal for:Conformal coating, covering, bonding, laying, hand soldering.

  • DeepPleat pre-filter

    The DeepPleat pre-filter consists of a pleated filter that allows for increased surface area in a smaller volume. This means Donaldson BOFA filters last a long time and don't take up a large footprint.

  • HEPA filter

    HEPA filters are designed to filter 99.995% of particles as small as 0.3 microns. Secondary filter to remove fine particles.

  • Advanced carbon filters

    Advanced carbon filters help capture contaminants and odors, reducing the risk of bypassing and tunneling. They are designed with special types of carbon tailored for industrial applications.

  • Reverse flow air technology

    Reverse flow air technology reduces the speed and changes the direction of the air, causing larger particles to enter the filter outlet chamber. This reduces the ingress of particles into the filter media, significantly improving the filter's capture performance and extending the filter's life.

  • System OK signal (optional)

    The system OK signal warns of an error when filters are blocked and when filters are approaching full capacity, allowing for efficient maintenance scheduling.

  • Remote stop/start signal (optional)

    A remote stop/start signal ensures that your Donaldson BOFA fume extraction system only operates when your unit is running, helping to save on both operating costs and energy.

  • VOC sensor (optional)

    The VOC (Volatile Organic Compound) sensor continuously monitors exhaust air and alerts you if VOC levels exceed a preset threshold, preventing the release of unwanted VOCs and other unpleasant odors.

Technical specification

Size: 590 x 375 x 465 mm

Weight: 35 kg

Air flow / pressure: 350 m³/h / 96 mbar

Electrical data: 115-230 V 1 ph 50/60 Hz Full load current: 12.5 amps / 1.1 kW

Noise level (at normal operating speed): < 60 dBA
