KH5070 80W + Built-in CW3000 Cooler
KH5070 80W + Built-in CW3000 Cooler
Couldn't load pickup availability
Technical specification
Technical specification
- Co2 lamp power : 80w
- Surface area : 50x70 cm
- Max cutting speed : 60 mm/s
- Max engraving speed : 500 mm/s
- Max material cutting thickness : veneer 7.8 mm
- Type of work table lifting : electric
- Optimum setting for cutting 3mm veneer: 30mm/s at 60% power
Collection
Collection
The laser engraver comes complete with everything you need to work with it right away:
- Smoke removal system - pump and pipes
- Built-in cooler in the device
- Air compressor - for removing smoke from the laser head.
- The program of the original manufacturer - connects to the recorder via usb 2.0
Equipment purchase and warranty
Equipment purchase and warranty
On-site facilities
it is possible to check and try it in our warehouse in Ķekava by calling us in advance or
writing.
We provide for each device
also training and installation demonstration at our premises.
If necessary to perform
delivery, training and installation at your premises, call us or write and
considering each situation individually, we will create a price offer for your chosen services .
Warranty for the equipment - 2 years. Depreciation parts: lens, mirrors and laser lamp - 1 year.

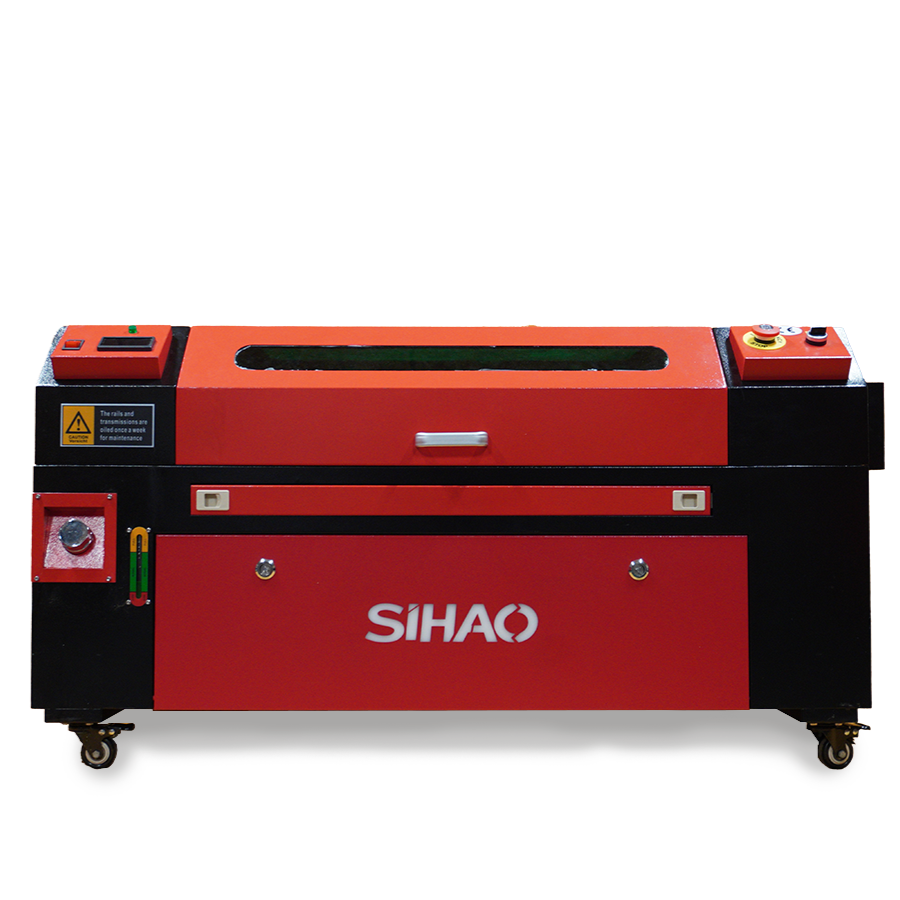

KH7050 is a CO2 type laser device with a table size of 50x70cm. The absolute most popular laser device on the Latvian market. The 80W model will also cope very well with cutting thicker materials. If you don't want to compromise on either cutting or engraving, by purchasing the 80W model, we can complete it with an additional lens for engraving! It is also possible to place longer materials in this machine than the size of the table allows, because both the front and the back can be opened, which means that you will be able to pass the material through the laser machine. You will find more information about the technical specifications, the equipment and the purchase of the equipment below.
We also provide maintenance, repair and calibration services.
Training and a demonstration of the installation of the equipment at our premises is included in the price. If you require delivery and would like a quote, please contact us in advance.
The working surface of the device is 70x50cm, the power of the laser lamp is 80W.
Useful functions
- "Emergency power off",
which, in the event of an emergency shutdown, allows you to resume work from the point where work was interrupted.
- A water cooling safety mechanism that prevents the pump from starting when the pump is not switched on, thus protecting the laser lamp.
- Measurement of the dimensions of the project on the surface, etc.
To be able to work with longer materials, it is possible to open the front and side doors of the laser engraver. It is also possible to connect a rotating tool, which will allow you to engrave cylindrical objects.
The laser engraver is equipped with a Ruida RDC6442S-B (EC) controller, which provides
precise operation of the laser engraver and since it has a built-in memory is possible
work and control the laser engraver from the display on the machine, without other auxiliary devices.
EASY TO MOVE
The device is on wheels for easier movement. The laser engraver can be disassembled into 2 parts by removing the legs, which allows it to be brought into tighter spaces or even placed on a table.
