Laser engraver LD4060
Laser engraver LD4060
Couldn't load pickup availability
Technical specification
Technical specification
- Co2 tube power: 60 W / 80 W / 100 W
- Surface area: 40x60 cm
- Maximum travel speed: 1000 mm/s
- Workbench: Honeycomb workbench/aluminum knife (optional)
- Precise positioning: <0.01 mm
- Operating temperature: 5℃ to 35℃
- Resolution ratio: ≤4500 dpi
- Data transfer interface: USB (offline)
- Cooling type: water cooling
- Supported graphic format: Files that can be identified by CoreDraw, Photoshop, AutoCAD (BMP, GIF, JPEG, PCX, TGA, TIFF, PLT, CDR, DMG, DXF, PAT, CDT, CLK, DEX,, CSL, CMX, AI, WPG, WMF, EMF, CGM, SVG, SVGZ, PCT, FMV, GEM, CMX)
- Cutting thickness: 0-20mm (depends on different materials)
Collection
Collection
The laser engraver comes with everything you need to get started right away.
Acquisition
Acquisition
On-site facilities
it is possible to check and try it in our warehouse in Ķekava by calling us in advance or
writing.
We provide for each device
also training and installation demonstration at our premises.
If necessary to perform
delivery, training and installation at your premises, call us or write and
considering each situation individually, we will create a price offer for your chosen services .
Warranty for the equipment - 2 years. For wear parts: for lens, mirrors and laser lamp - 1 year.

Product description
- The machine uses internationally recognized advanced DSP control technology and high-speed cutting control software. It is equipped with a buffering function during rapid movement, and also uses a USB interface for data transmission.
- Built-in pumping, vacuum and auxiliary flow systems effectively eliminate problems that have long caused difficulties in the production of laser equipment, and significantly extend the service life of the laser tube.
- The device is equipped with three protection functions – anti-interference protection, water protection and power failure protection, which ensures greater safety, longer service life and stable operation.
- The effective cooling, lubrication and dust removal system guarantees that the machine operates reliably, stably and for a long time.
- The machine automatically adjusts the working height to maintain a constant focal distance, which ensures smooth and high-quality cutting.
- The machine is designed for cutting various metals, ensuring precise and stable cutting quality.
Thanks to a powerful laser tube and a modern control system, the machine is capable of cutting metals such as stainless and carbon steel, as well as many non-metallic materials, including acrylic, wood, MDF, plywood, leather, fabric, foam and plastic, with high quality. It is equipped with an automatic focus function: if the metal sheet is not perfectly flat, the system detects the distance from the nozzle to the surface of the material and automatically adjusts the focus to maintain the most accurate cutting quality.

Application:
1. Metal material: This laser cutting machine can cut carbon steel, stainless steel. Depending on the different metal
We will adjust the cutting width, current, frequency and cutting speed according to the materials and thickness.
2. Non-metallic materials: This laser cutting machine can also cut wood, bamboo, jade products, stone (only
can be engraved), organic glass, crystal (can only be engraved), rubber, plastic, etc.

Compact and precise CO₂ engraving machine – Lambda Laser 4060 for professional and creative solutions

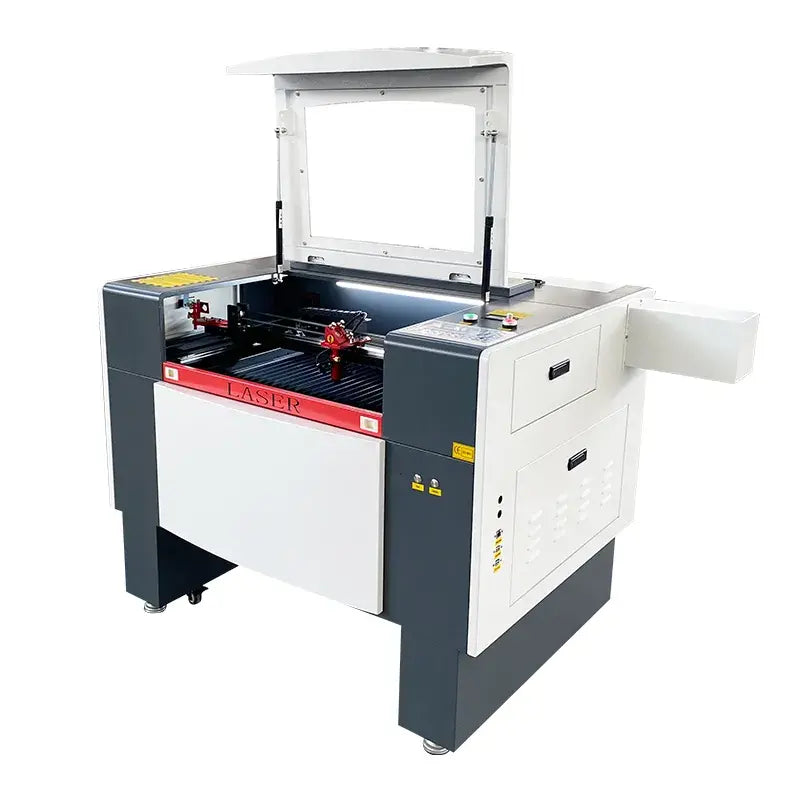

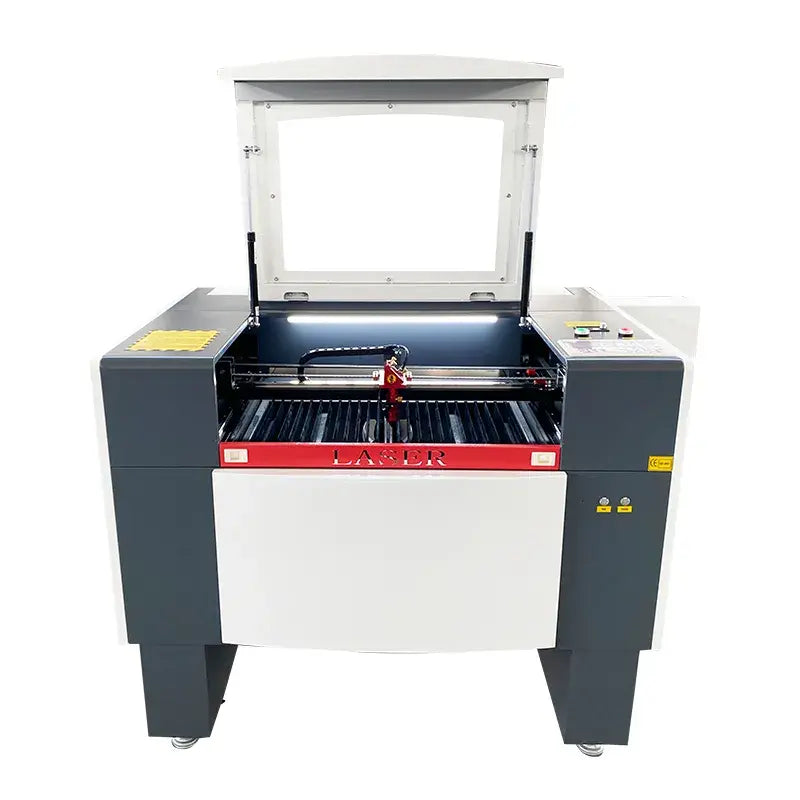

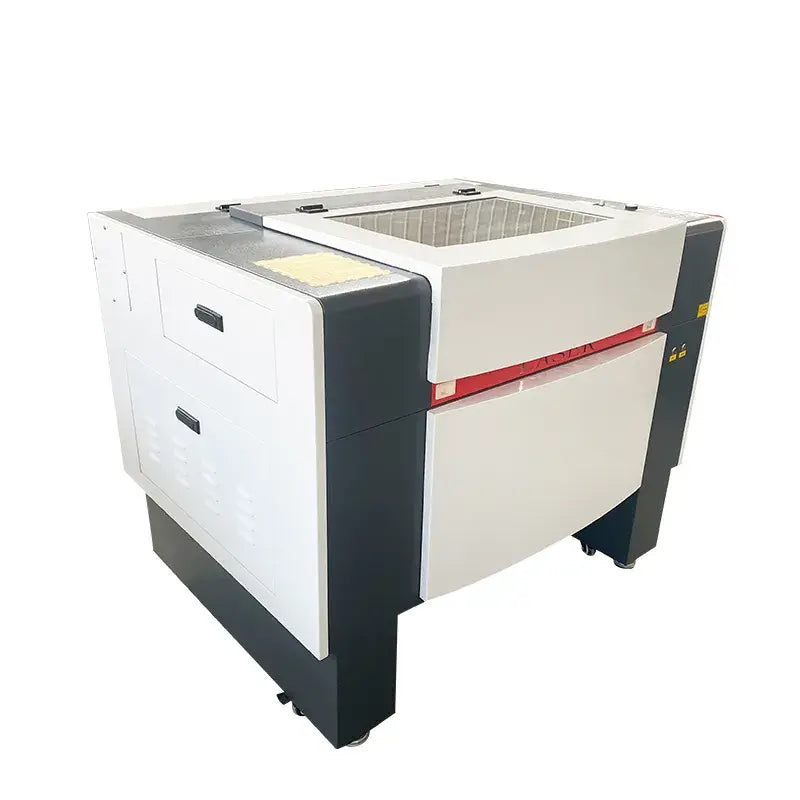

The Lambda Laser 4060 CO₂ laser engraving machine is a compact and versatile solution for precise engraving and cutting of various non-metallic materials such as wood, acrylic, MDF, leather and fabric. With a 400 × 600 mm working area and a 60-100 W CO₂ laser tube, this machine ensures high performance and quality. It is equipped with an advanced DSP control system that supports USB connection, allowing you to work both online and offline. The autofocus function and electrically adjustable work table ensure consistent cutting quality even on uneven surfaces. The cooling, air blowing and exhaust system integrated into the machine ensures safe and efficient operation. Thanks to these features, the Lambda Laser 4060 is ideal for both professional use and creative projects.
